2018 Newest scvi version J2534 Diagnostic Tool for Ford & for Mazda Support Online Module Programming

FOB Reference Price:Get Latest Price
$137.00 - $145.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Code Reader
Voltage:
V
Power:
W
Certification:
CE
Applicable Models:
for Ford & Mazda car
Place of Origin:
Guangdong, China
Brand Name:
CREACLE
Model Number:
FVDI J2534
Warranty:
12 Months
Function:
Professional Diagnose Tool
Version:
latest version
Update:
Online
Performance:
High Performance
Quality:
Superior
Language:
Muitl-languages
Item Name:
FVDI J2534
Special Features:
Diagnostic Fault Code
Item Type:
Auto Diagnostic Scanner
Application:
for Ford & Mazda car
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
16*15*5
Port
shenzhen

Product description

SVCI J2534 is a vehicle communication interface device that full compatible with SAE J2534-1 and partly compatible with SAE J2534-2.It supports most of vehicle communication protocols and can be used as PassThru device for many dealer level diagnostic software.And it can be used as a ELM327 device also,support most of ELM327 software.

Newest SVCI J2534 Diagnostic Tool for Ford & Mazda Support Online Module Programming

SVCI J2534 is a vehicle communication interface device that full compatible with SAE J2534-1 and partly compatible with SAE J2534-2.It supports most of vehicle communication protocols and can be used as PassThru device for many dealer level diagnostic software.And it can be used as a ELM327 device also,support most of ELM327 software.

Top 7 Reasons to Get SVCI J2534:

1. High speed host communication.(3 Mbps)
2. Stable host communication.(with RTS/CTS flow control)
3. Automatically register software and no virtual machine needed.
4. Online software update and keep software latest always.
5. Online fireware update.
6. USB 802.11 selectable host communication.
7. Support ELM327 software by one device.

SVCI J2534 Support Softwares:

J2534 Ford IDS V110.1
Mazda IDS V110
Toyota TIS V13.00.022
Land Rover/Jaguar SDD2 V154.01
Nissan Consult II Plus R2R V65+V75

SVCI J2534 Support ELM327 Softwares:

ELMconfig
Forscan
FOCCCUS
FF2

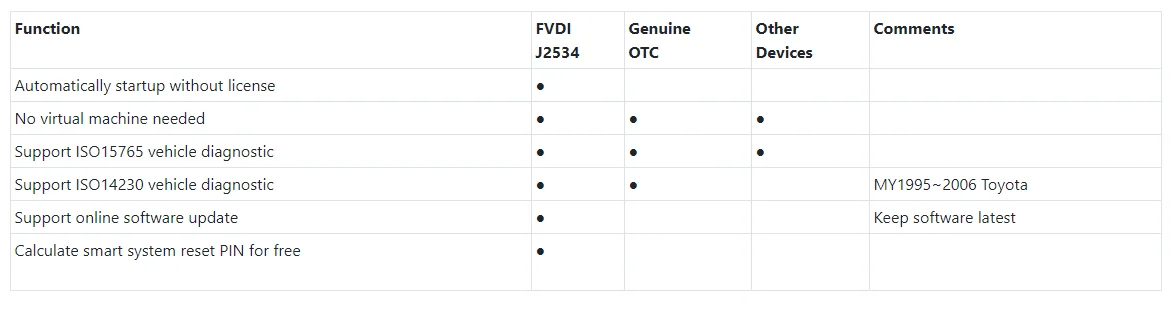

SVCI J2534 Comparison Table with other Devices

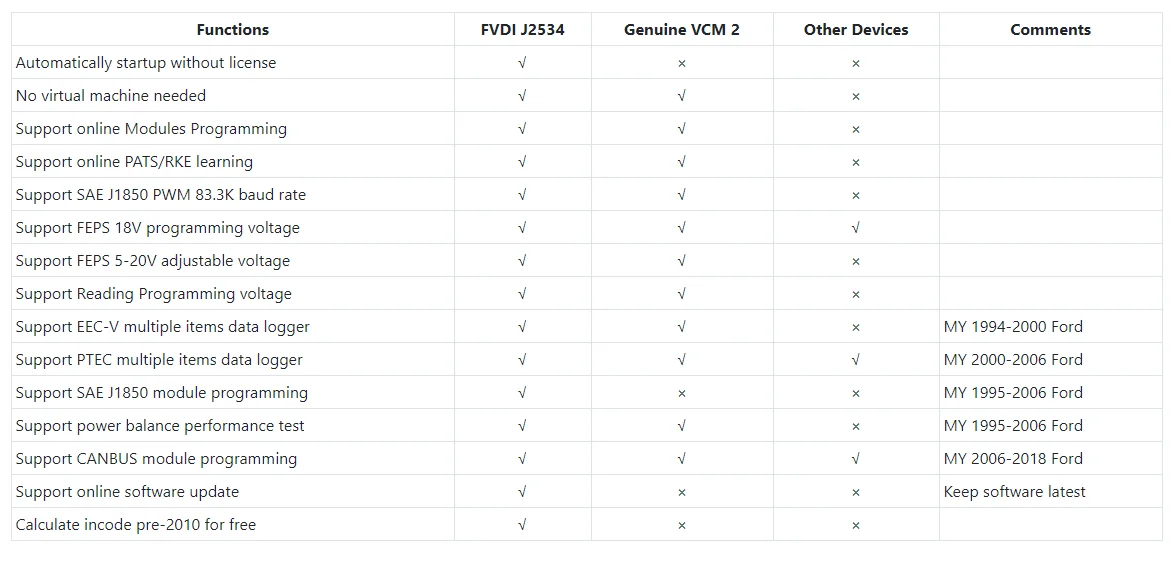

SVCI J2534 VS. Ford/Mazda IDS:

SVCI J2534 VS. Toyota TIS:

SVCI J2534 Support Protocols:

ISO9141 IS014230
J1850 VPW
J1850 PWM(Ford SCP)
IS011898 HS(500K BPS)
IS011898 MS(125K BPS)
IS015765 HS(500K BPS)
IS015765 MS(125K BPS)
FEPS(Flash EEPROM Program Signal)
KWP1281
J2819(TP2.0)

SVCI J2534 Specifications:

L*W*H:                                  76mm*54mm*22mm
Environmental:                      -20℃-45℃(-4℉-113℉) at 15% to 85%
Voltage Requirements:         8-32V DC,10 mA(max),0.6W @ 12V DC non-condensing
Vehicle Connection:              Molded DLC3(OBDII-16)

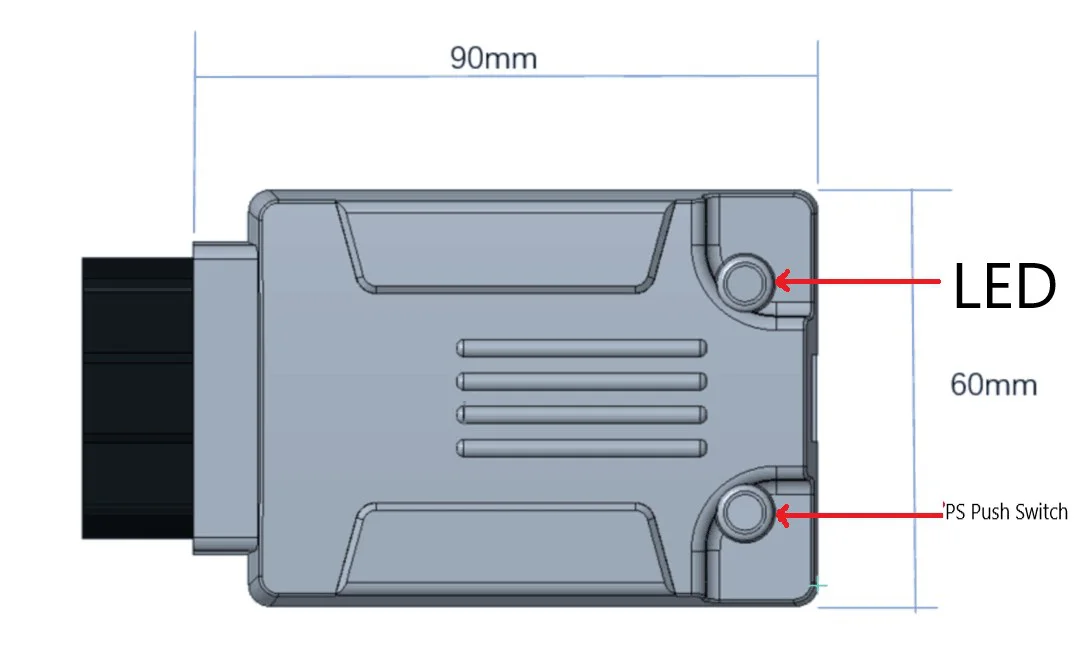

SVCI J2534 Appearance Details:



LED:
Work normal: Green LED blinks continuously slowly Firmware updating: Red LED blinks continuously quickly

PS Push Switch:
Pressed: works as ELM327 mode Released: works as J2534 mode
